Weld Overlay Clad Process
RocCLAD is a metallurgical bonding technology of two kinds of different metals. It is the 100% metal fusion technique.
RocClad makes overlay welding on most carbon, low alloy, chrome moly, stainless steel and other steels with variety of corrosion resistant alloy including Inconel®, Incoloy®, Monel®, Hastelloy®, stainless steel and hard facing materials. Benefiting from our advanced DSP or PLC controlled welding stations and optimized producing process, we offer low dilution of alloy deposit. Real time video monitoring and recording system ensure perfect tie in and weldpath. Iron (Fe) content of the Inconel 625 cladding layer can reach less than 5% in the surface 1mm below the top surface.

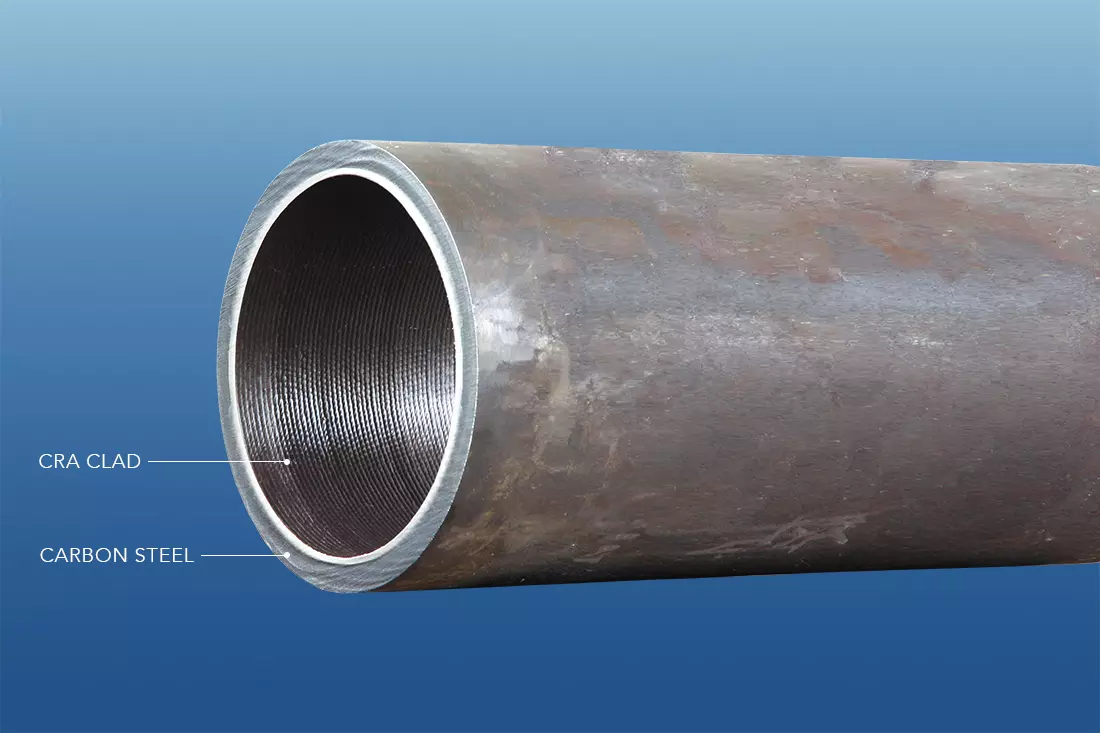

Seamless & Welded CRA Clad Pipes
- Base Material of Pipes: ASTM A53 Gr.B, A106 Gr.B, API 5L Gr.B, X42, X52, X60, X65, X70; ASTM A333 GR.6, Stainless Steel
- API 5L+CLAD, A671 / A672 + CLAD
- ID Ø110~1200mm; Length up to 12.2 m
- CNC boring & milling machine bevel processing
- Automatic internal and external joint welding
- Pipe end laser measurement
- Pickling and passivation on internal surface
- 3LPP anti-corrosion protection on pipes outside surface
- Thickness of base pipes: 6mm~75mm
- Process of Bending: Hot Induction Bending and Cold Bending
- Bend Radius: 3D~10D or on customer’s request
- Bend Angles: For Cold Bending 1°~180° / For Hot Induction 1°~100°
- Diameter of Clad Bends: 4”~24”
- Wall Thickness of Clad Bends: STD~75mm
