Weld Overlay Clad Process
RocCLAD is a metallurgical bonding technology of two kinds of different metals. It is the 100% metal fusion technique.
RocClad makes overlay welding on most carbon, low alloy, chrome moly, stainless steel and other steels with variety of corrosion resistant alloy including Inconel®, Incoloy®, Monel®, Hastelloy®, stainless steel and hard facing materials. Benefiting from our advanced DSP or PLC controlled welding stations and optimized producing process, we offer low dilution of alloy deposit. Real time video monitoring and recording system ensure perfect tie in and weldpath. Iron (Fe) content of the Inconel 625 cladding layer can reach less than 5% in the surface 1mm below the top surface.
- API 5L+CLAD, ASME B16.49, ISO15590-1, ASTM A860/A420 + CLAD
- 2”~60”, STD~100mm, ≥3D
- Performance test per dimension, per material, per furnace and per radius
- Dimensional & pigging inspection
- 100% RT for weld joint
- Hydro test
Clad Pipes, Hot Induction Clad Bends
- Base Material of Pipes/Plates:
ASTM A53 Gr.B, A106 Gr.B, API 5L Gr.B, X42, X52, X60, X65, X70; ASTM A333 GR.6 - Thickness of base pipes: 6mm~75mm
- OD of Pipes: 110mm~1500mm
- Length of Pipes: Up to 12.2m

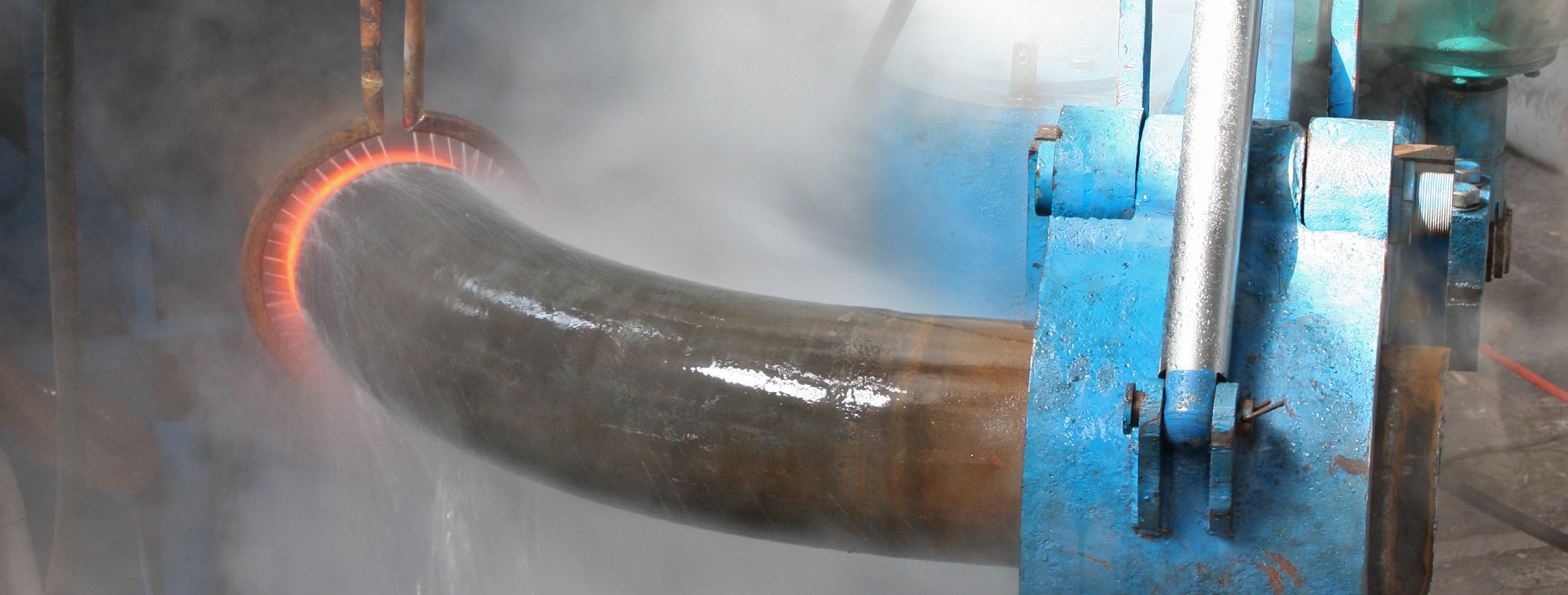

- Process of Bending: Hot Induction Bending and Cold Bending
- Bend Radius: 3D~10D or on customer’s request
- Bend Angles: 1°~100°
- Diameter of Clad Bends: 4”~24”
- Wall Thickness of Clad Bends: STD~75mm
